ESCO 10501C 3.5 Quart Turbo II Air Hydraulic Pump Kit with Hose Coupler
This item is no longer available and it has been replaced by the ESCO 10518 Pro Series 1/2 Gallon Air Hydraulic Pump, CLICK HERE.

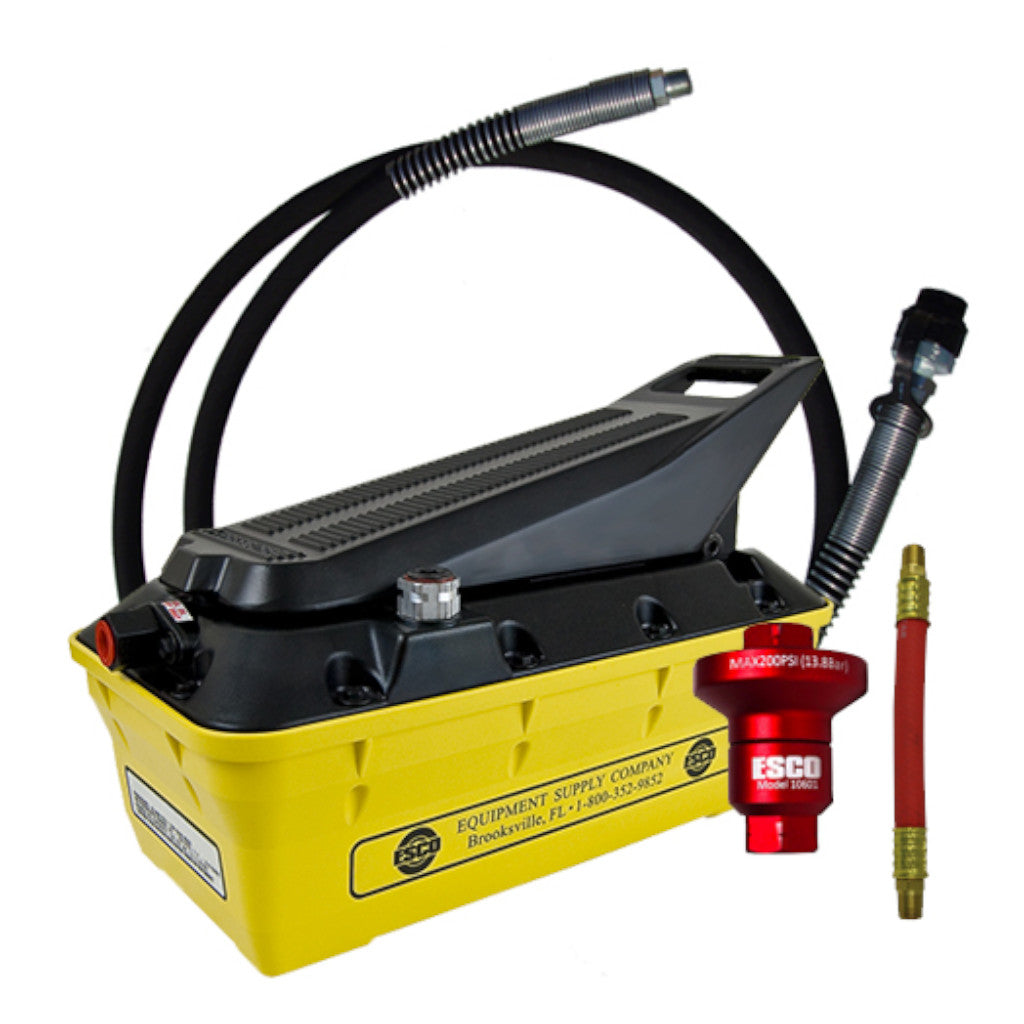

The ESCO 3.5 Quart Turbo II Air Hydraulic Pump Kit includes the following items:
- Model 10500 – 3.5 Quart Turbo II Air Hydraulic Pump
- Model 10604 – 8' Hose Assembly with Hose Coupler
- Model 10601K – 6″ Whip-Hose, Air Reducer

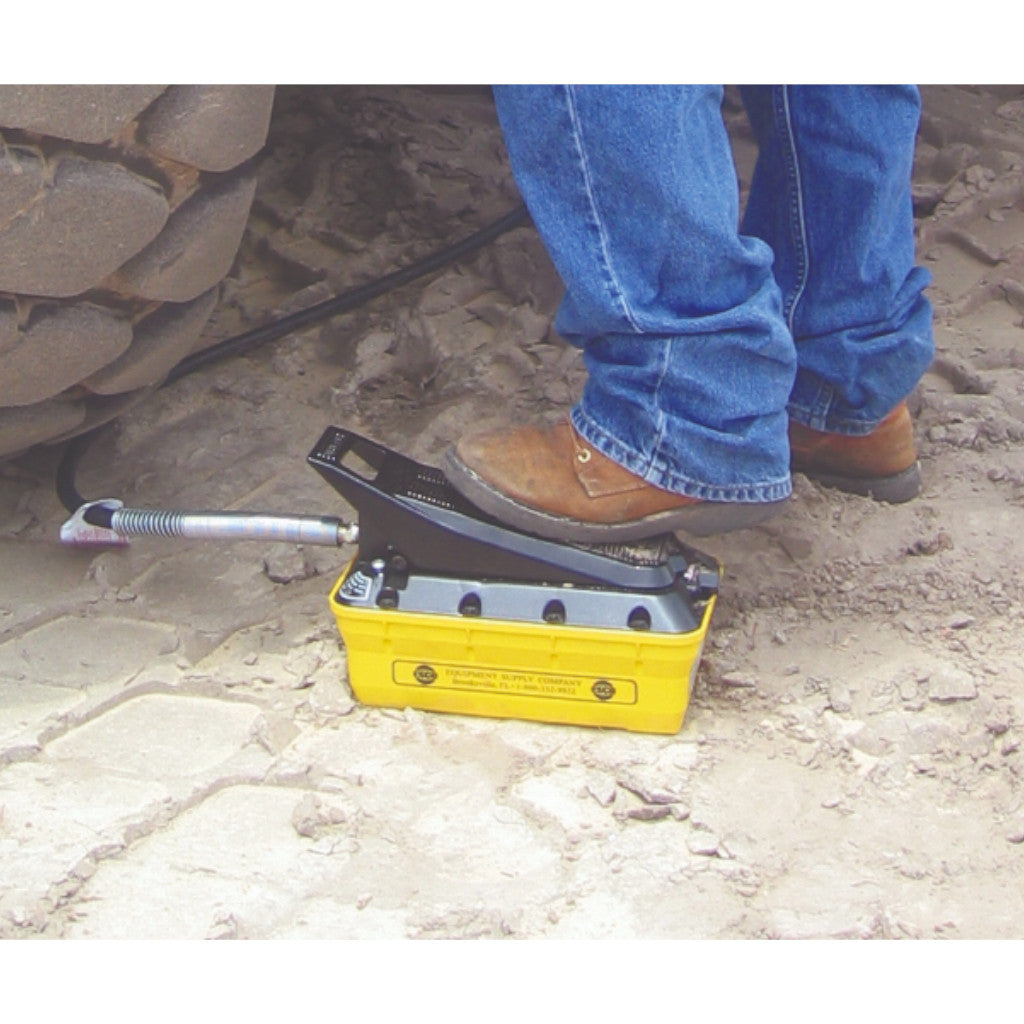

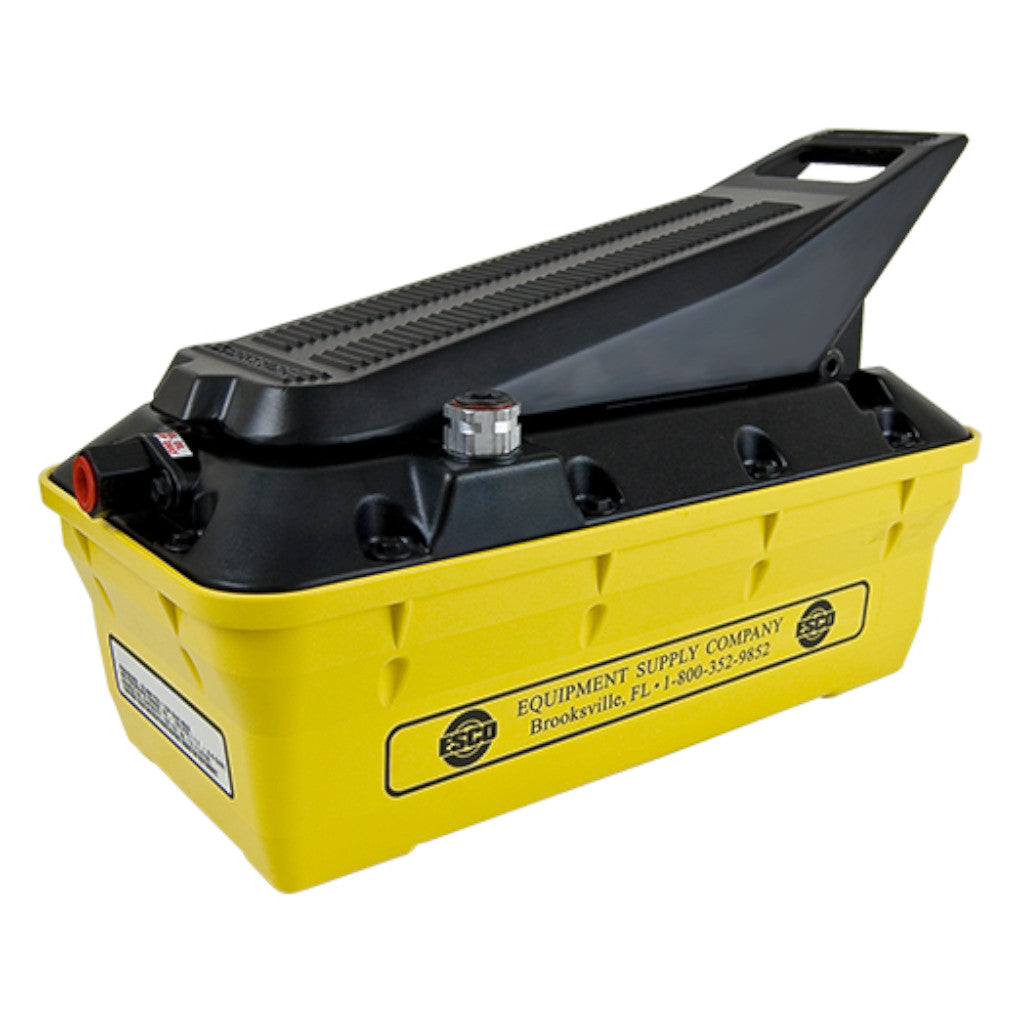

ESCO 10500 3.5 Quart Turbo II Air Hydraulic Pump
Features:
- 3.5 quart oil capacity - Shipped with premium hydraulic oil
- Rugged, light-weight plastic reservoir with polyglass sight gauge
- 10,000 psi hydraulic pressure
- Easily works on rams and bead breakers with oil to spare
- Compact design easily fits storage bins
- Fastest Pump Available
Specifications:
- Oil Capacity: 3.5 Quart
- Maximum Pressure: 10,000 PSI
- Weight: 18 lbs (8 kg)

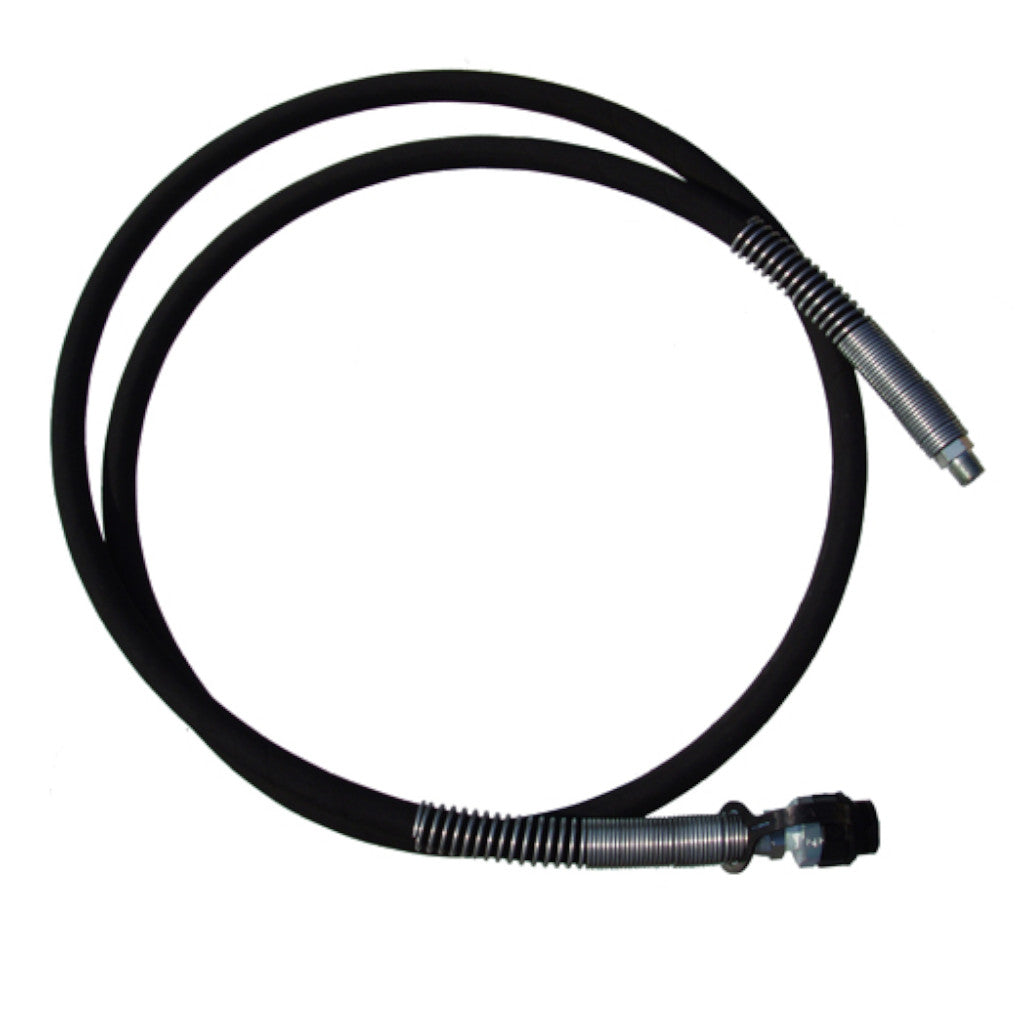

ESCO 10604 Hydraulic Hose Kit
Features:
- Hydraulic hose with swivel fitting and the hose won’t kink
- Reinforced with 2 layers of braided steel
- Hose can withstand extreme cold temperatures of -40°F (C)
- Use with any 10,000 psi. pump, ram, or bead breaker
- Attachments Include: ESCO 10605 Half Coupler
Specifications:
- Length: 8' (8' Hose with 3/8″ 18 Male Ends)
- Weight: 5 lbs. (2.2 kg)

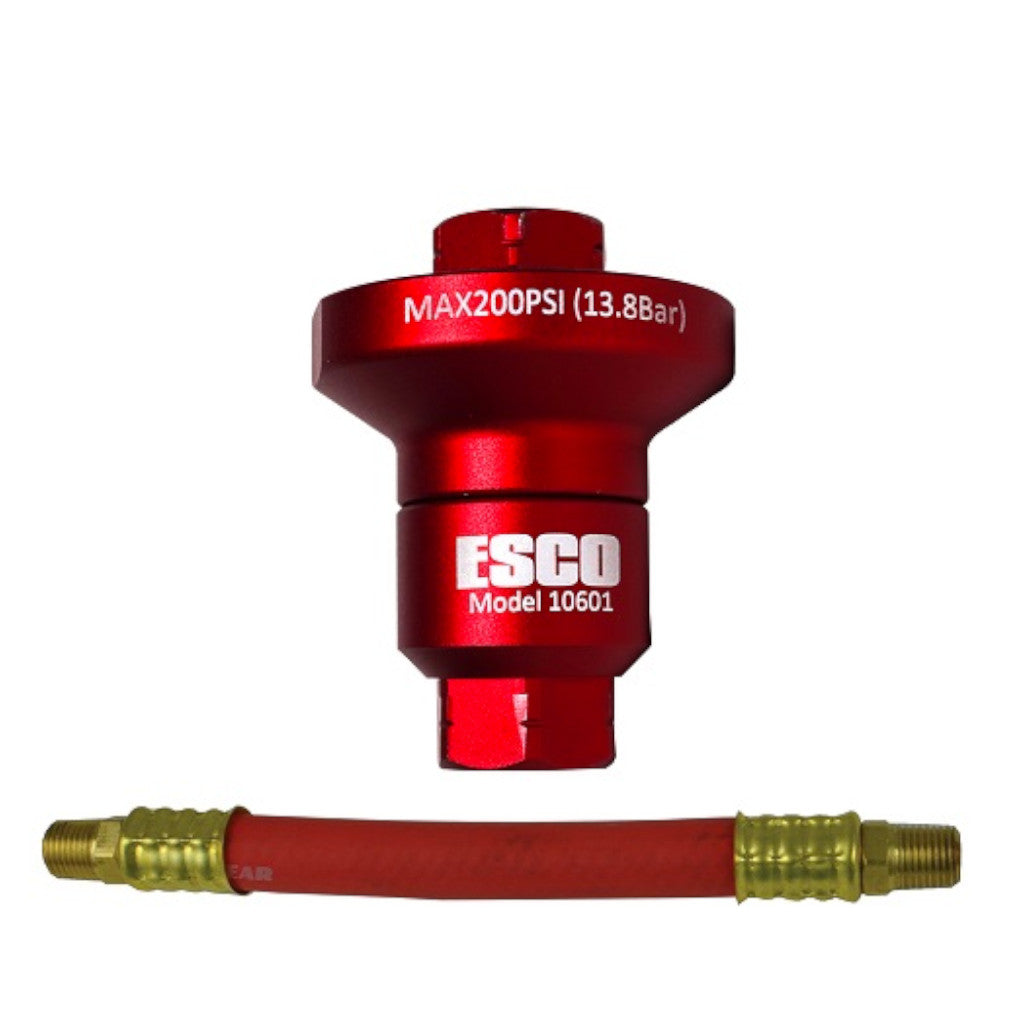

ESCO 10601K Air Reducer With 6″ Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.
The ESCO 10601K Kit Includes:
- Model 10601 Air Reducer
- Model 10601H 6″ Whip-Hose
Features:
- Maintain recommended working air pressure
- Easy installation and usage
- Can be used in conjunction with multiple ESCO products
Model 10601 Specifications:
- Diameter: 15/16″ (24 mm)
- Working Air Pressure: 110 PSI
- Air Inlet Size: 1/4″ NPT
- Weight: 1 lb (0.5 kg)
Model 10601H Specifications:
- Length: 6″ (152.4 mm)
Compliance and Restrictions
