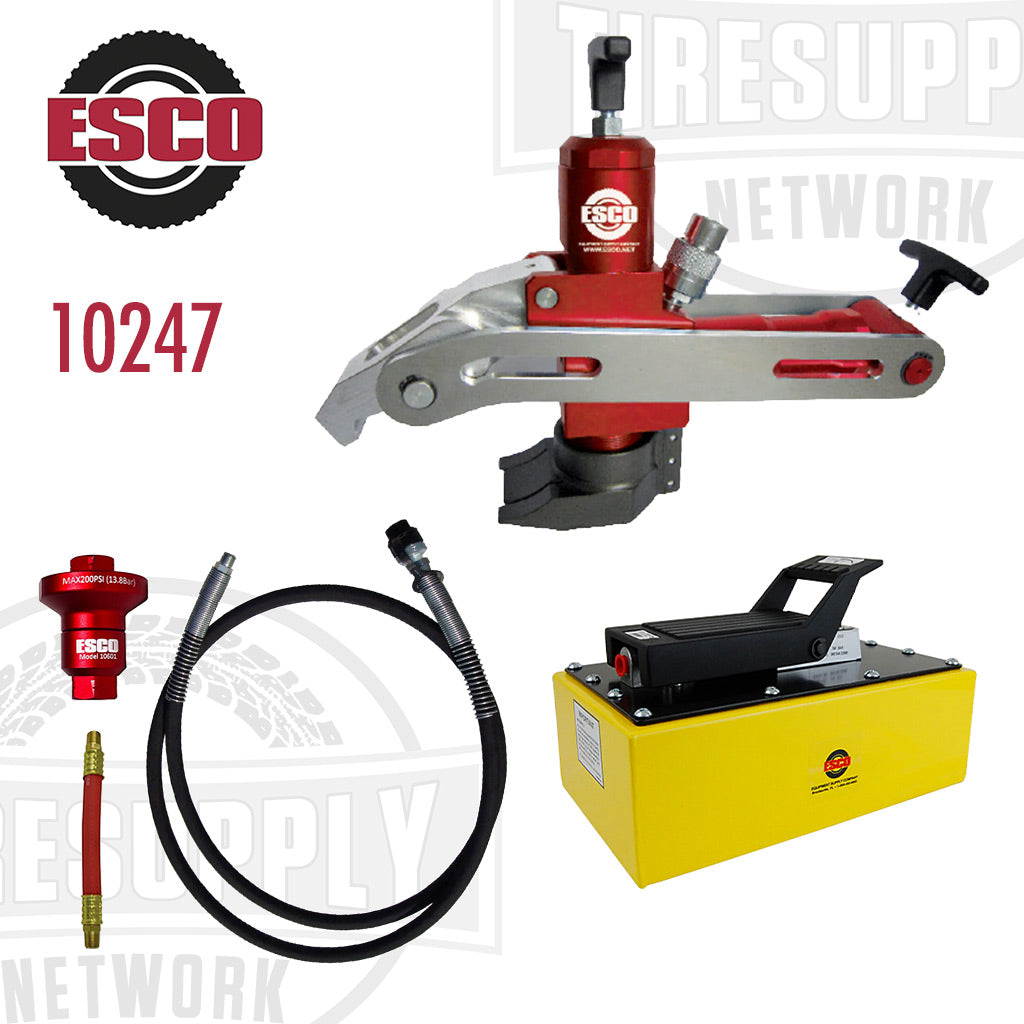

ESCO 10247 Combi Style Aluminum Bead Breaker Kit with 5 Quart Hydraulic Pump
The Combi Style Aluminum Bead Breaker Kit includes the following items:
- Model 40801 – Combi Style Aluminum Bead Breaker Tool
- Model 10592 – 5 Quart Hydraulic Air Pump
- Model 10604 – 8' Hose assembly with Hose Coupler
- Model 10601K – 6″ Whip-Hose, Air Reducer

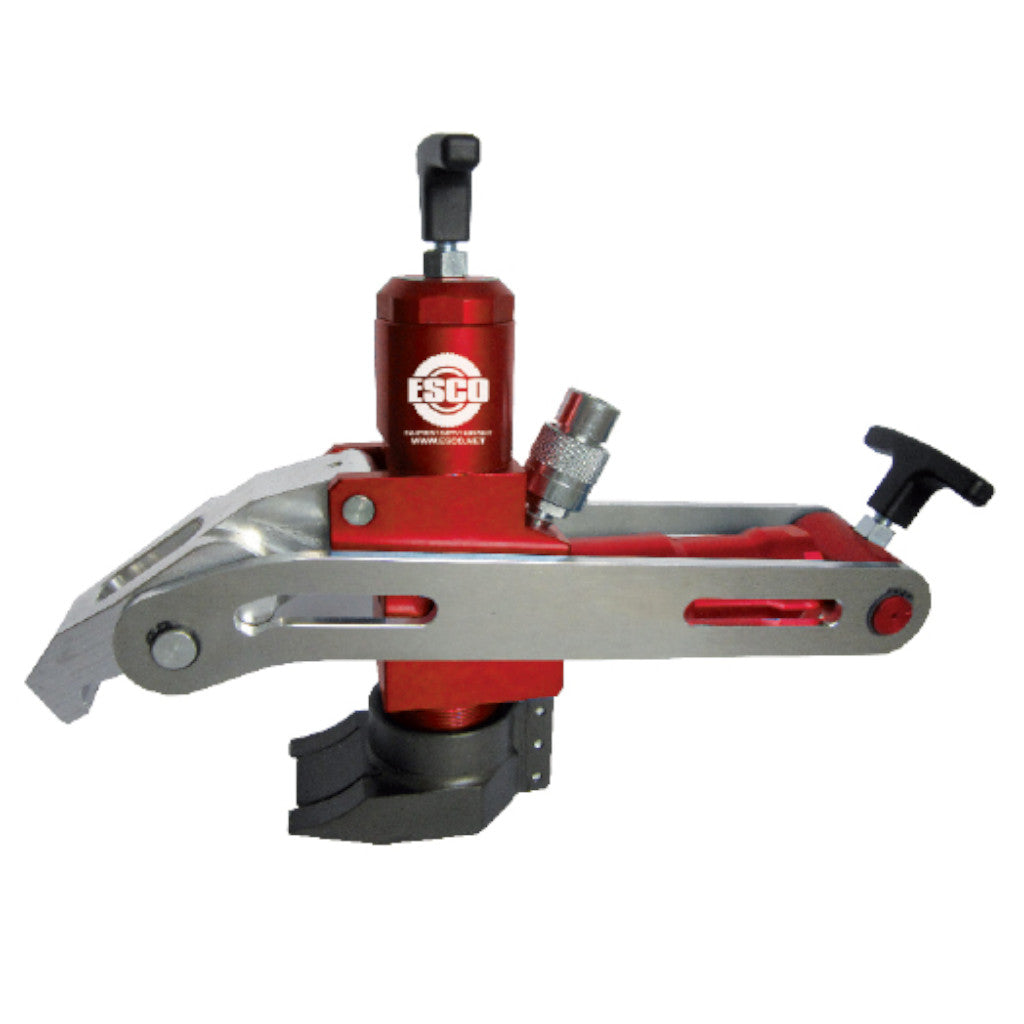

ESCO 40801 Combi Style Aluminum Bead Breaker
Features:
- Lightweight aluminum construction
- 10 tons of bead breaking force
- Comparable to the ESCO Model #10101 Combi bead breaker
- To be used on 3-piece wheel assemblies
- Extended jaw for deep dish style wheels (extended flange)
Specifications:
- Ram Tonnage: 10 Tons
- Stroke: 2.75″ (70 mm)
- Weight: 19 lbs (8.5 kg)

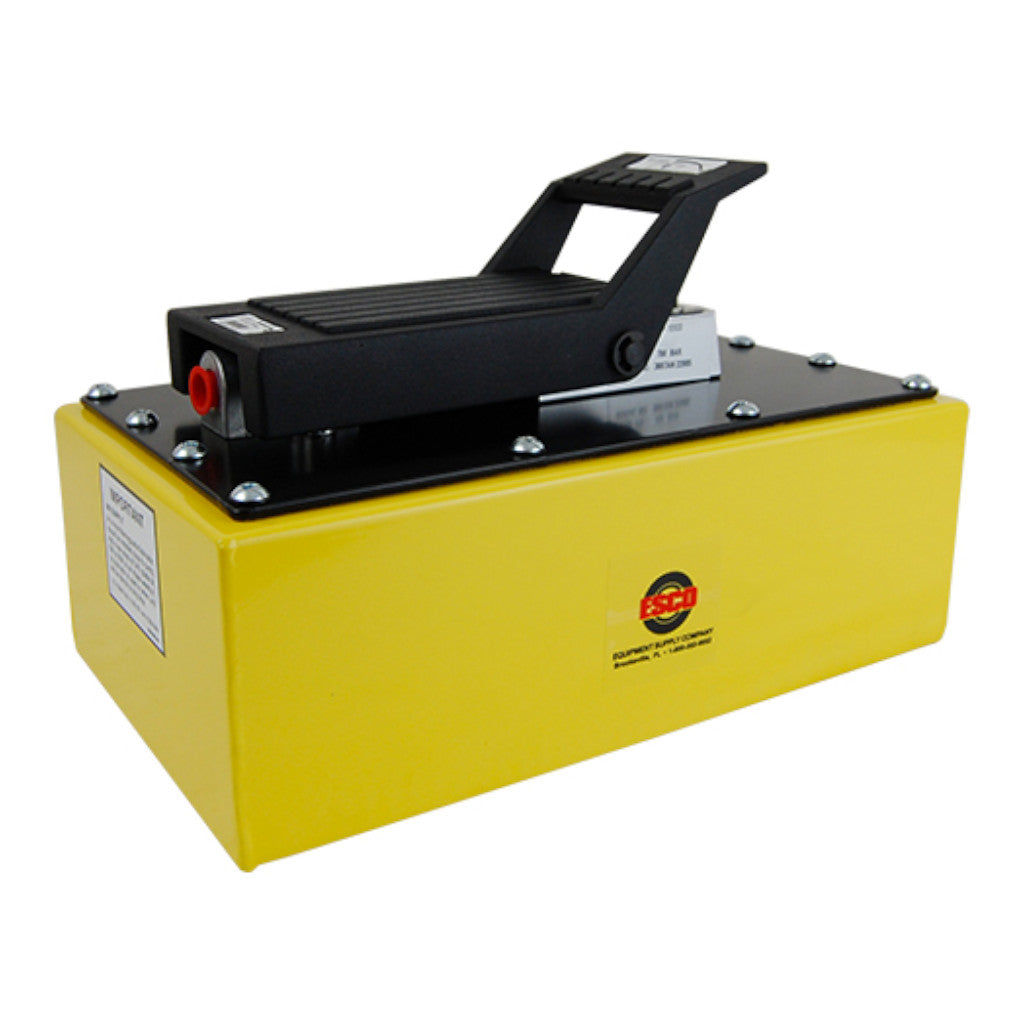

ESCO 10592 5-Quart Metal Reservoir Air Hydraulic Pump
Features:
- Rugged 5 Quart metal reservoir
- Enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools
- All metal air motor
- Air inlet filter keeps air clean
- Specifically designed for tire service trucks
- 10,000 psi hydraulic pressure
Specifications:
- Oil Capacity: 5 Quart
- Maximum Pressure: 10,000 psi
- Weight: 27 lbs (12 kg)

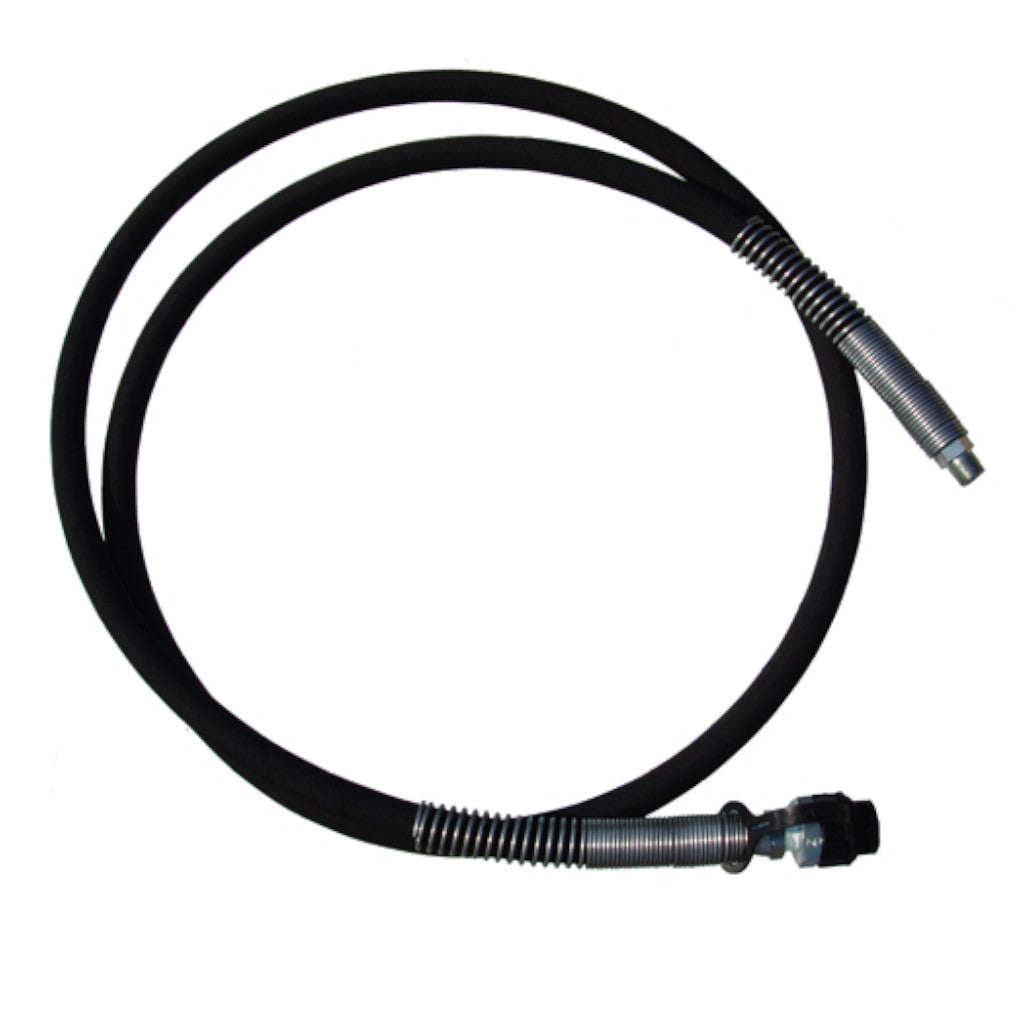

ESCO 10604 Hydraulic Hose Kit
Features:
- Hydraulic hose with swivel fitting and the hose won’t kink
- Reinforced with 2 layers of braided steel
- Hose can withstand extreme cold temperatures of -40°F (C)
- Use with any 10,000 psi. pump, ram, or bead breaker
- Attachments Include: ESCO 10605 Half Coupler
Specifications:
- Length: 8' (8' Hose with 3/8″ 18 Male Ends)
- Weight: 5 lbs. (2.2 kg)

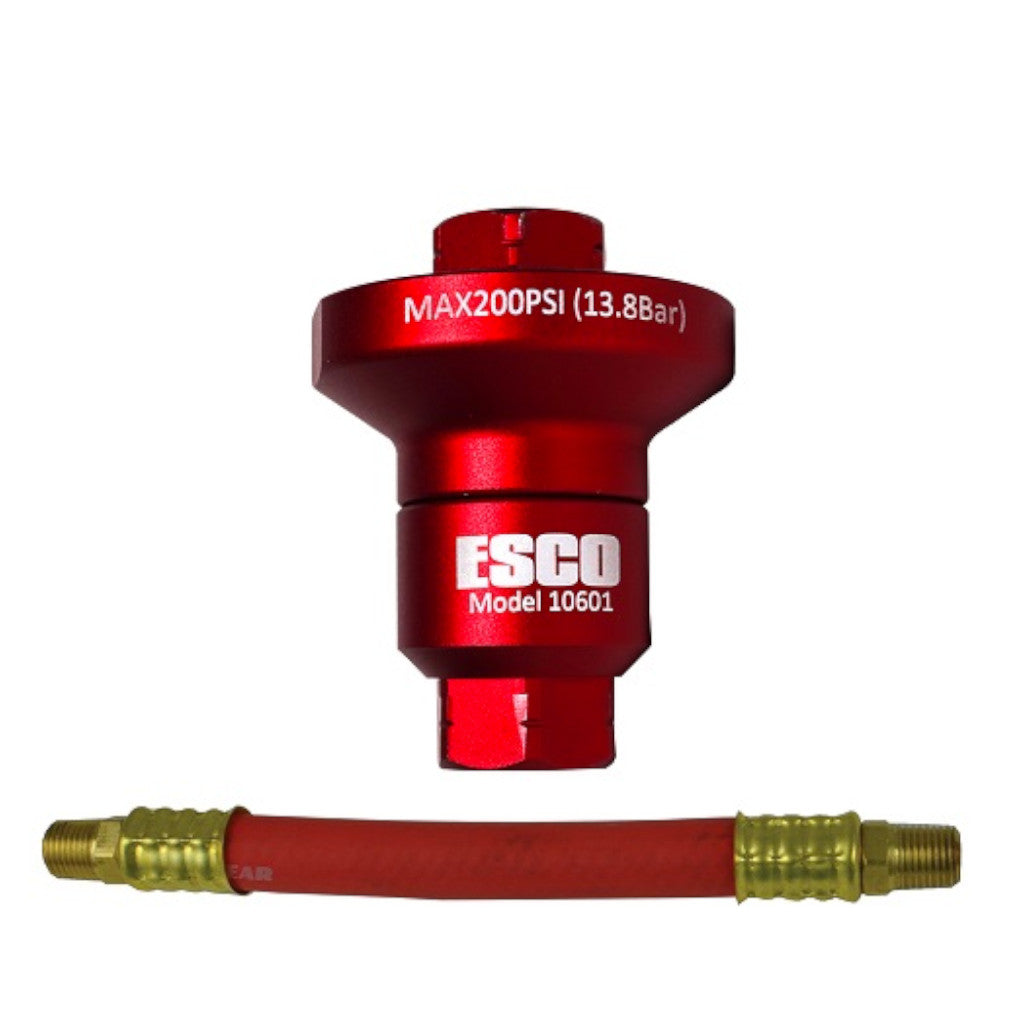

ESCO 10601K Air Reducer With 6″ Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.
The ESCO 10601K Kit Includes:
- Model 10601 Air Reducer
- Model 10601H 6″ Whip-Hose
Features:
- Maintain recommended working air pressure
- Easy installation and usage
- Can be used in conjunction with multiple ESCO products
Model 10601 Specifications:
- Diameter: 15/16″ (24 mm)
- Working Air Pressure: 110 PSI
- Air Inlet Size: 1/4″ NPT
- Weight: 1 lb (0.5 kg)
Model 10601H Specifications:
- Length: 6″ (152.4 mm)
Compliance and Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
