ESCO | Giant Tire Bead Breaker Head Kit with 1 Quart Manual Hydraulic Pump (10224)

ESCO | Giant Tire Bead Breaker Head Kit with 1 Quart Manual Hydraulic Pump (10224)

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

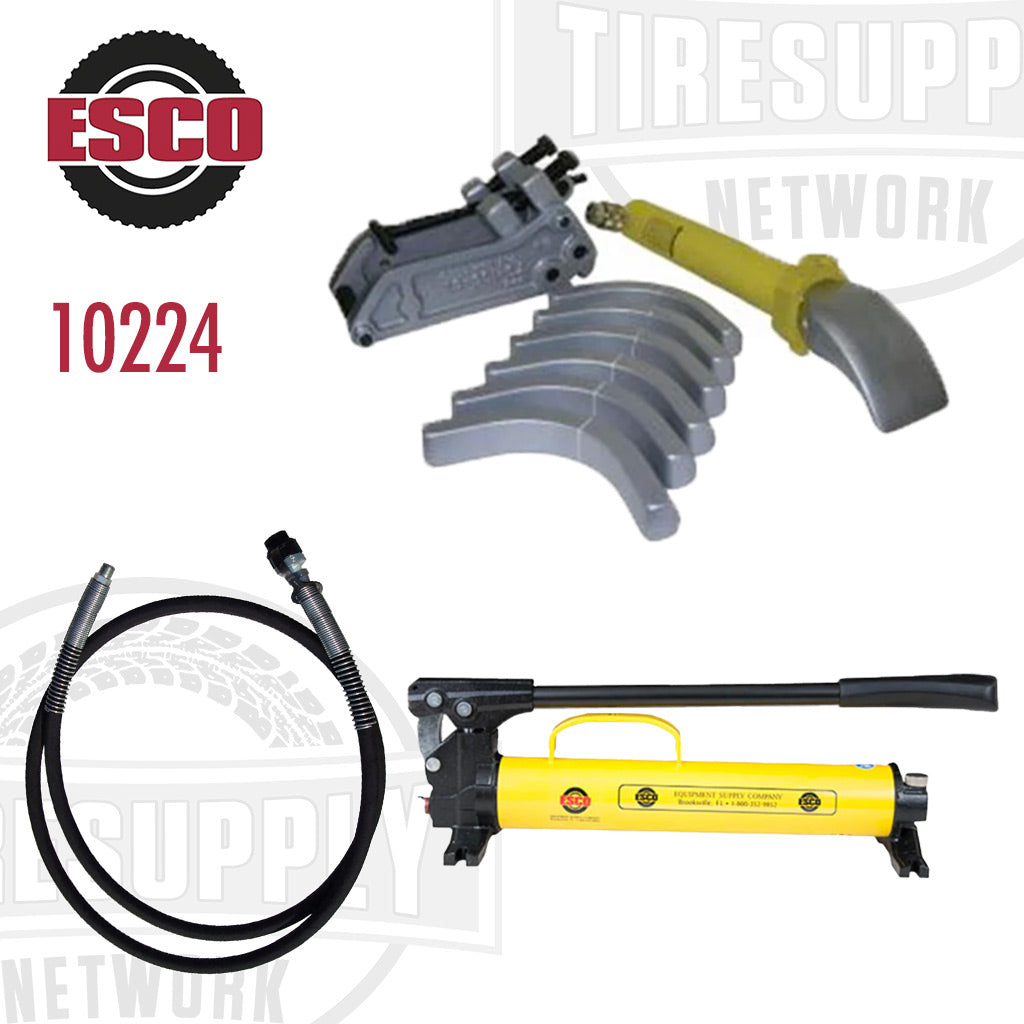

The ESCO Giant Tire Bead Breaker Head Kit includes the following items:

• Model 10104 – Giant Tire Bead Breaker Head Tool
• Model 10508 – 1 Quart Manual Hydraulic Air Pump
• Model 10604 – 8′ Hose Assembly with Hose Coupler

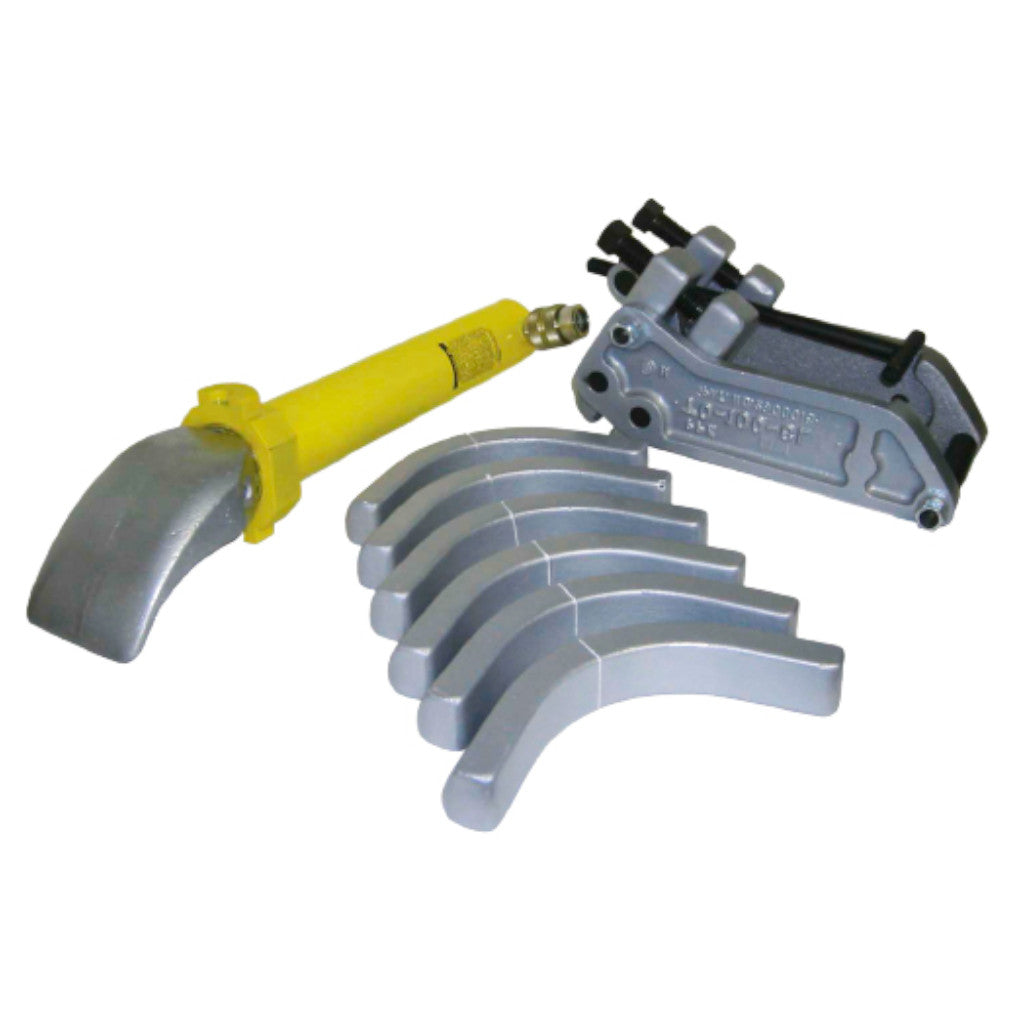

ESCO 10104 10″ Stroke Giant Tire Bead Breaker Head

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

Features:

• Use on 5-piece rims 25″ to 51″ without pry bar/bead loosening pockets.
• Replaces Goodyear TO-100-HA. Stroke: 10″ (254 mm)
• Includes ESCO Model #10216 ram assembly, ESCO Model #10215 frame assembly, and wedges.

Specifications:

• Ram Tonnage: 10 Tons
• Stroke: 10″ (254 mm)
• Maximum Pressure: 10,000 PSI
• Length: 23″ (584 mm)
• Width: 10″ (254 mm)
• Weight: 68 lbs (31 kg)

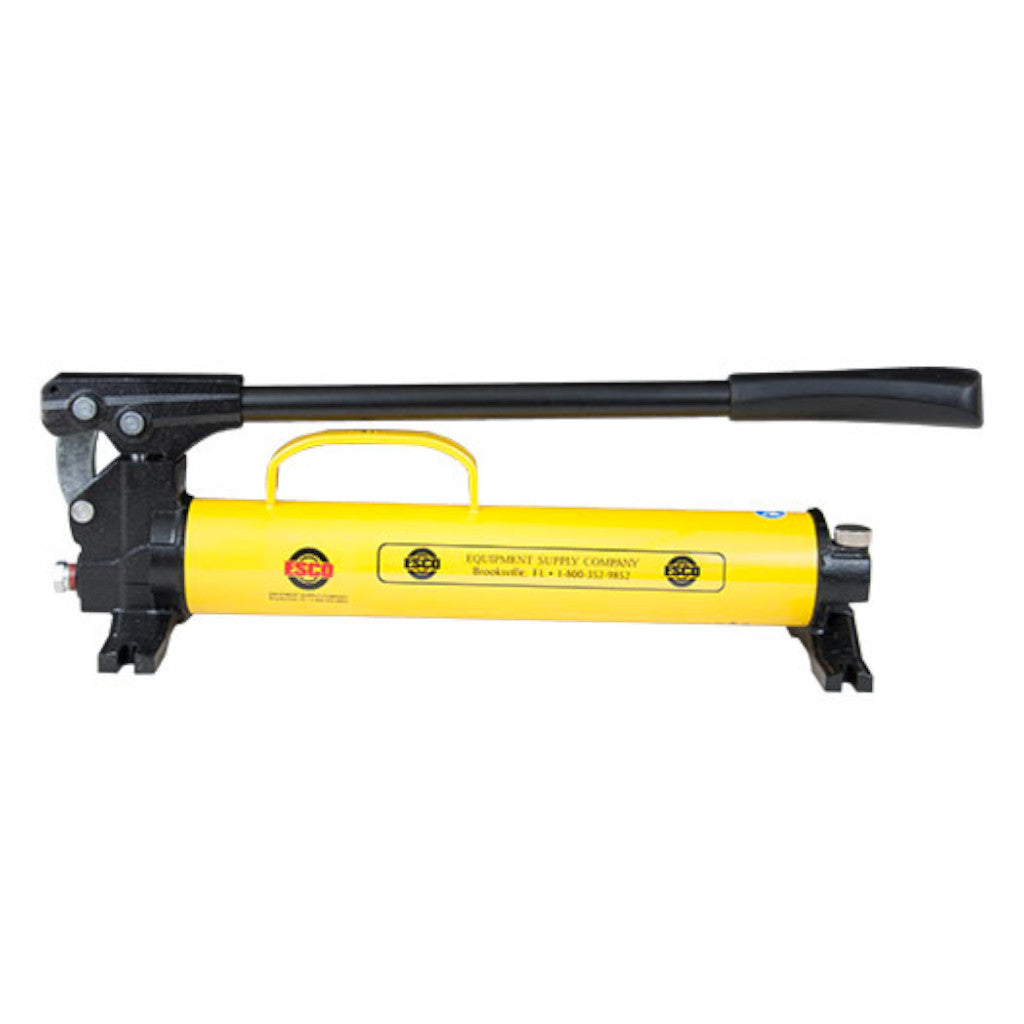

ESCO 10508 1-Quart Hydraulic Manual Air Pump

Features:

• Hand Operated Hydraulic Pump
• 1 Quart Oil Capacity
• 10,000 PSI Hydraulic Pressure
• Ships with premium hydraulic oil

Specifications:

• Oil Capacity: 1 Quart
• Maximum Pressure: 10,000 PSI
• Weight: 14 lbs (7 kg)

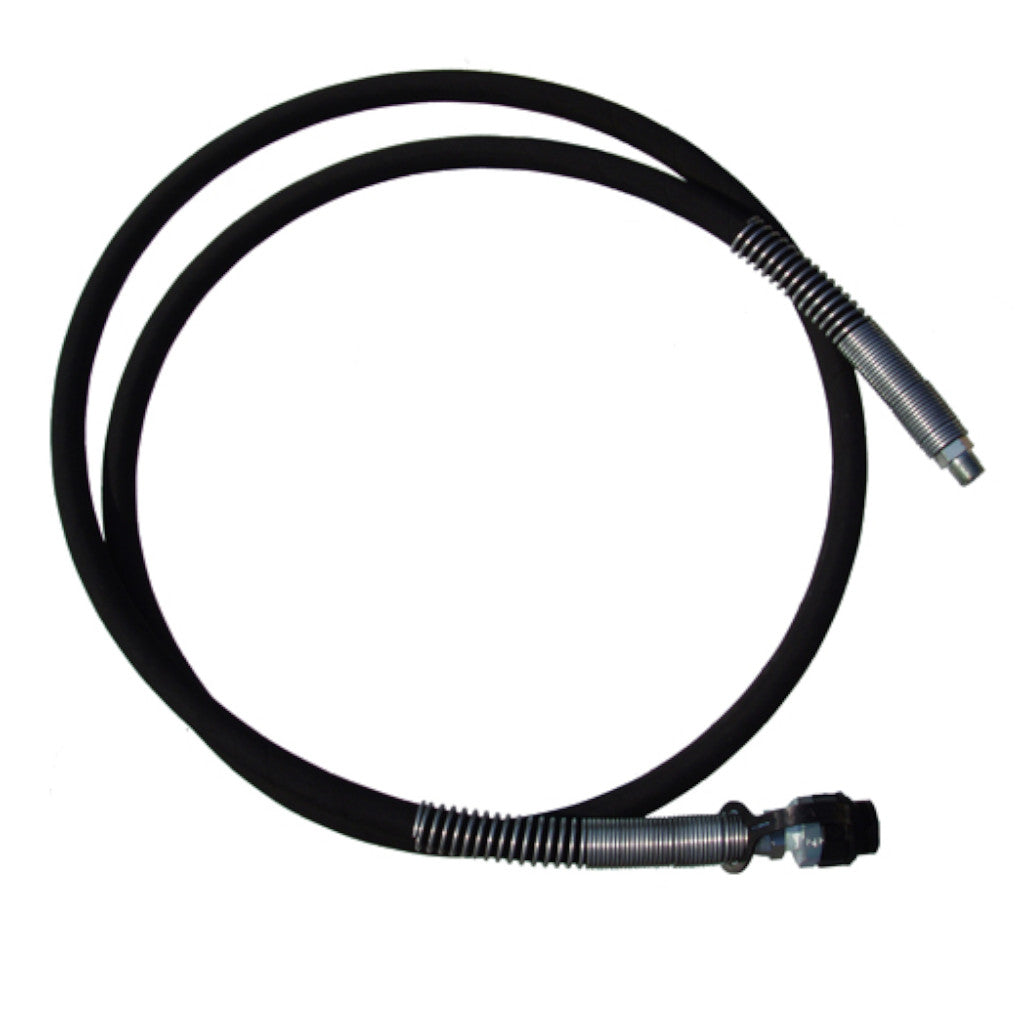

ESCO 10604 Hydraulic Hose Kit

Features:

• Hydraulic hose with swivel fitting and the hose won’t kink
• Reinforced with 2 layers of braided steel
• Hose can withstand extreme cold temperatures of -40°F (C)
• Use with any 10,000 psi. pump, ram, or bead breaker
• Attachments Include: ESCO 10605 Half Coupler

Specifications:

• Length: 8' (8' Hose with 3/8″ 18 Male Ends)
• Weight: 5 lbs. (2.2 kg)

Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
