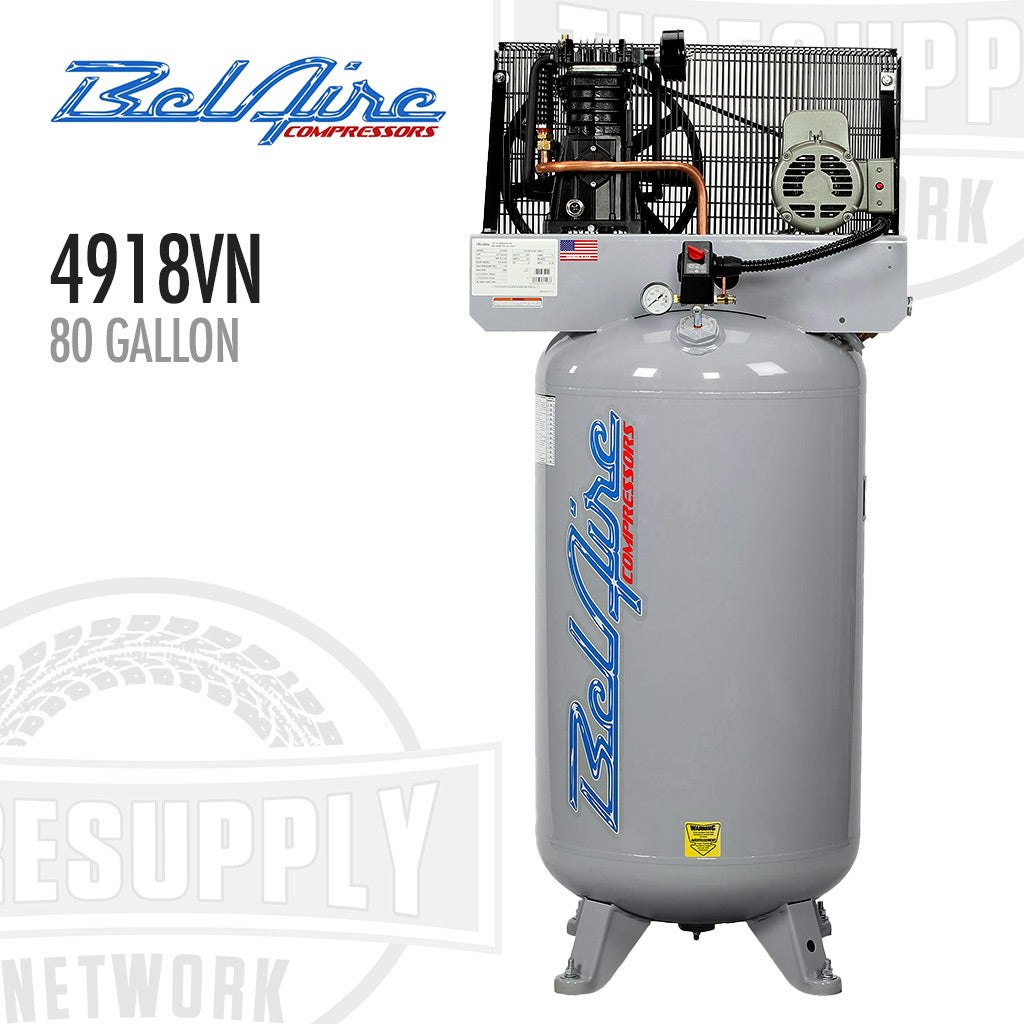

BelAire | 80 Gallon Electric Air Compressor - 1PH, 5HP - Vertical (4918VN)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Featuring a two-stage solid cast iron pump, this compressor is built for durability and extended service life. The 80-gallon vertical ASME-certified tank provides ample air storage, reducing the frequency of motor cycling and ensuring a steady supply of compressed air for various tools and equipment.
The unit operates with a splash lubrication system and includes an oil sight glass for easy monitoring of oil levels. A fully enclosed high-flow belt guard enhances safety and protects internal components from debris and damage.
Designed with a compact footprint, the BelAire 4918VN is ideal for environments where space is limited. Its vertical design allows for efficient use of floor space while providing the power needed for demanding tasks.
Features:
- Two-stage solid cast iron pump designed for superior quality & extends the life of the pump
- Compact design is ideal for work environments where space is a premium
- 5 HP single-phase motor saves money with no need to purchase additional starter
- 80 gallon ASME certified tank in 100% factory tested at full pressure
- Fully enclosed high flow belt guard design provides added safety
- Oil level sight glass allows an easy check of the oil level at any time
- Start/Stop pressure switch control saves time and energy
- Stainless steel valves extend the life of the compressor
Specifications:
Motor
| Voltage |
230 Volt AC |
| Phase |
Single-Phase |
| Magnetic Starter |
No |
| Amp Draw |
22 |
| Recommended Breaker |
Consult Certified Electrician |
Engine
Pump
| CFM |
16.1 |
| CFM Rated @ |
100 PSI |
| Pump Material |
Solid Cast Iron |
| Max PSI |
175 PSI |
| Oil Sight Glass |
Yes |
| Pump Type |
Single-Stage |
| After Cooler |
No |
| Pump Drive |
Belt Drive |
| Oil Type |
Oil Lubricated |
| Oil System |
Splash Lubrication |
| Pump Low Oil Shut-Off |
No |
Tank
| Tank Size |
80 Gallons |
| Tank Outlet |
1/2 Inch |
| Electronic Drain Valve |
No |
| Tank Orientation |
Vertical |
Accessories
| Pressure Gauge |
Yes |
| Air Dryer |
No |
Overview
| Weight |
382 Pounds |
| Certification |
ASME |
| Consumer Warranty |
2 Year |
| Product Length |
26 Inches |
| Product Width |
24 Inches |
| Product Height |
73 Inches |
| Power Type |
Electric |
