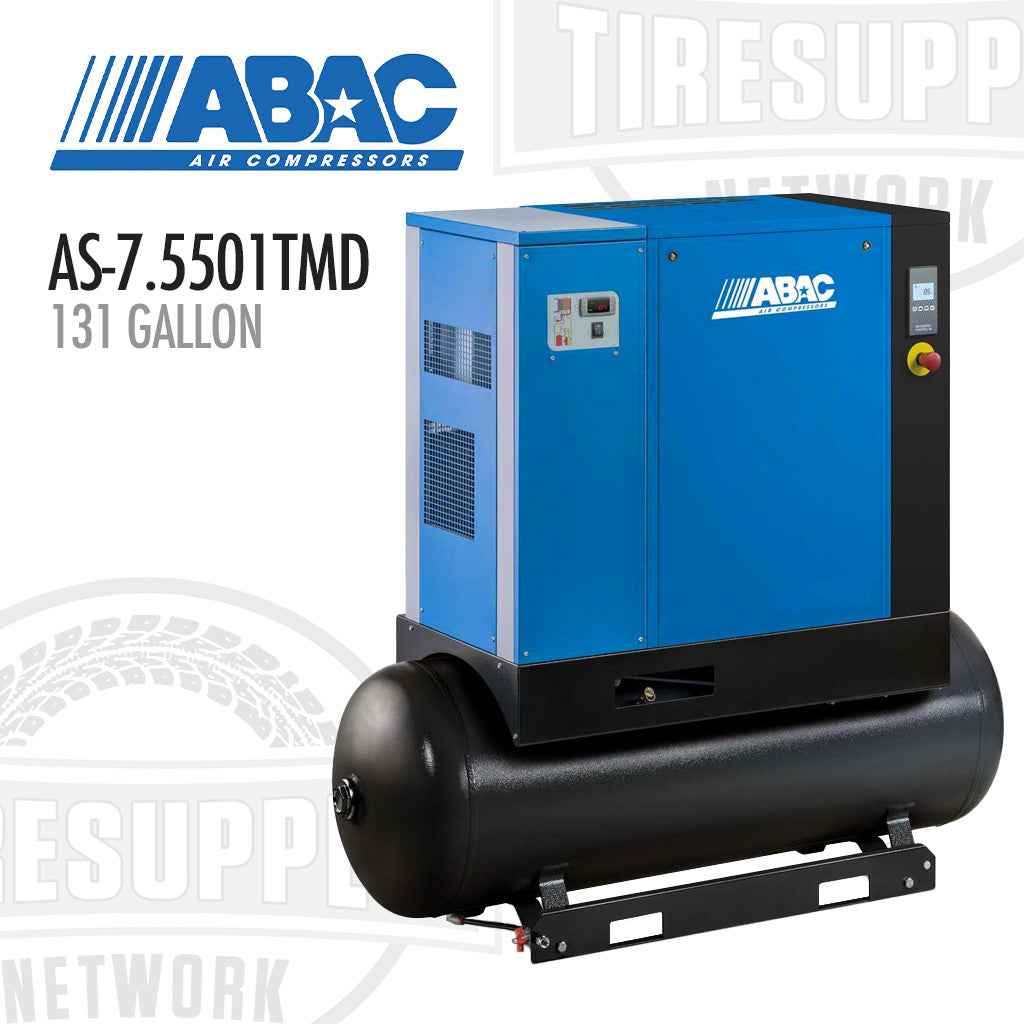

ABAC | Single Phase 7.5HP, 131 Gallon Tank Mount with Dryer 150 PSI Screw Compressor (AS-7.5501TMD)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Increased performance, reduced energy consumption. Legendary reliability. The ABAC Rotary Screw Compressor is an ideal solution for automotive and industrial applications where there is continuous demand for dependable compressed air.
Features:
- Grade: Commercial
- Voltage: 230 Volt AC
- Phase: 1-Phase
- CFM: 27.1
- Tank Size: 71
ABAC AS-B Series - 7.5 HP Tank-Mounted Rotary Screw Air Compressor w/ Dryer
Ideal for automotive and industrial applications. Provides superior performance, efficiency, and reliability
3-In-1 System - Compressor, Dryer & Receiver
Tank-mounted design allows for a compact foot print.
C43i Rotary Air End
27.1 CFM @ 100 PSI (150 Max PSI); 100% Duty Cycle. Oil-injected, belt-driven design for low noise and vibration regardless of RPM.
Integrated Block (IB) Design
Minimum parts, internally casted channels & integrated valves / fittings. Robust, hose-less, single piece compression and separation system. Allows for highly reliable operation and eliminates possibility of leaks.
High-Density Aluminum Block
Provides less porosity to provide a stable film on the surface. Decreases the risk of corrosion for longer compressor life.
Spin-On Vertical Oil Separation
Efficient, eco-friendly design provides superior separation. Helps minimize risk of damage to tools and equipment.
Integrated Refrigerant Dryer
Ensures dry, quality air without taking up extra space. Eliminates corrosion and damage due to moisture buildup.
7.5-HP IE3 Electric Motor (230-Volt - Single-Phase)
Energy efficient design helps to reduce power consumption and CO2 levels. Fan-cooled, can operate at ambient temperatures up to 115°F (46°C).
Air Energy Control - Basic Digital Controller
Remote Start / Stop and Automatic Restart. Running and Loaded Hours; Service & Failure Warnings.
Sound Attenuated Cabinet
Quiet Operation - As low as 67 dB(A)
71-Gallon ASME Air Receiver
Easily accessible tap for condensate drain. Forklift pockets in base structure for safer lifting.
Compact Design - 60"(L) x 23" (W) x 57" (H)
Allows you to use this compressor in a wide variety of locations.
Warranty
12-Months From Start-Up Or 18-Months From Ship Date (1st To Occur).
Specifications:
Engine:
| HP | 7.5 |
Motor:
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| dBA | 67 |
| Amp Draw | Full Load 35 / Nominal 34.7 |
| Recommended Breaker | Consult Certified Electrician |
Pump:
| CFM | 27.1 |
| CFM Rated | 138 PSI |
| Pump Material | Aluminum |
| Max PSI | 150 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Duty Cycle | 100% |
Tank:
| Tank Size | 71 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | Electronic Drain Valve |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | Yes |
| Air Filter | Yes |
Air Dryer
| Dryer Voltage | 115V 1-Phase |
| Non-Cycling | Yes |
Overview
| Product Category | Air Compressor - Stationary |
| Weight | 507 Pounds |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Depth | 60 Inches |
| Product Width | 23 Inches |
| Product Height | 57 Inches |
| Power Type | Electric |
Files:
| Brochure | Product Manual | Spec Sheet |
| Exploded Parts View | Warranty Registration | Warranty |
