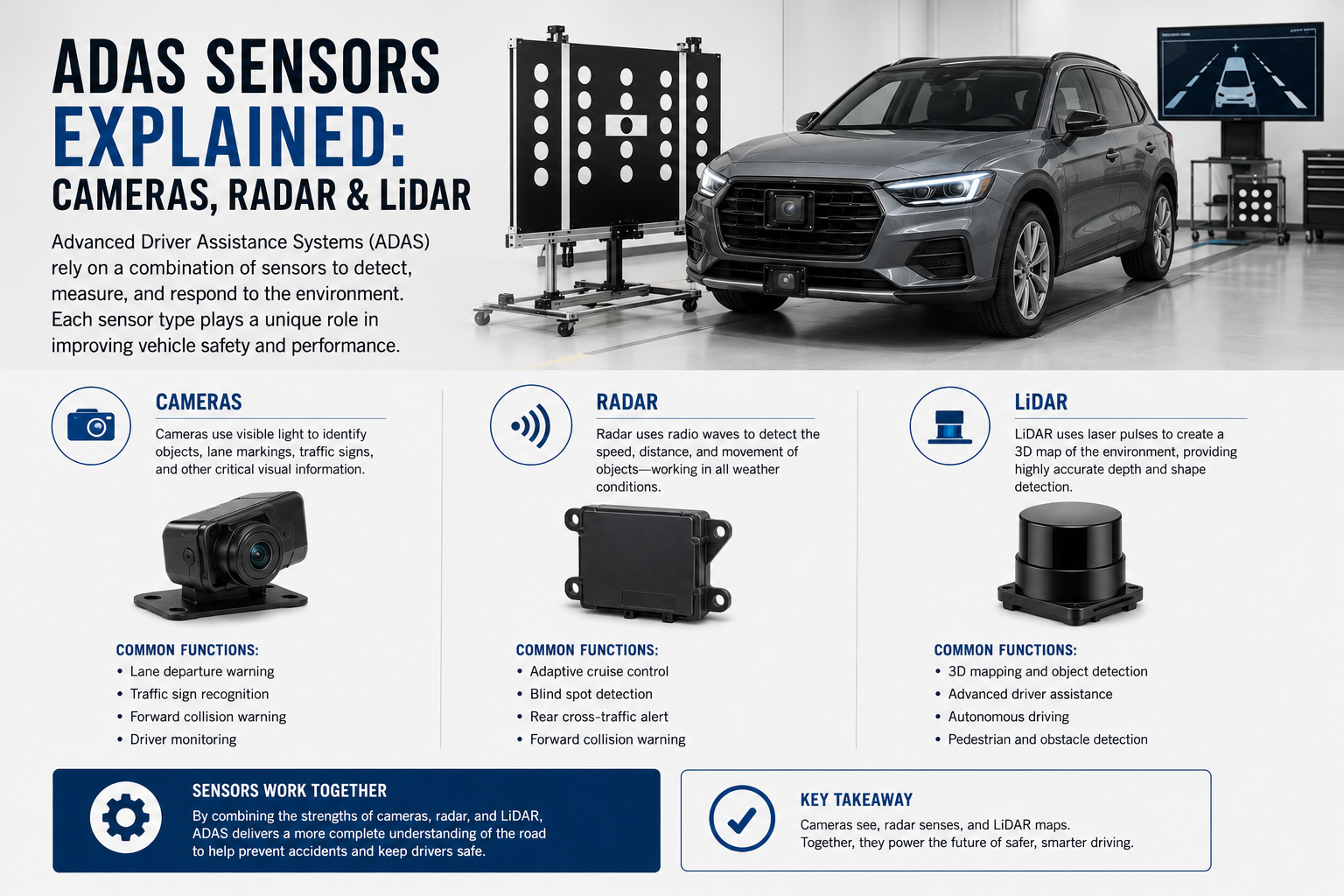

Advanced Driver Assistance Systems (ADAS) rely on a network of sensors that continuously monitor the vehicle’s surroundings to improve safety, assist driving decisions, and reduce the risk of accidents. The three core technologies behind most ADAS features are cameras, radar, and LiDAR—each playing a unique role in how modern vehicles “see” the road.
Understanding how these sensors work—and how they complement each other—is key for technicians, shop owners, and drivers who want to stay ahead of today’s rapidly evolving vehicle technology.
If you're new to ADAS services, read our Complete Guide to ADAS Calibration to learn when calibration is required, what equipment is needed, and how modern shops are implementing ADAS workflows.
What Are ADAS Sensors?
ADAS sensors are electronic components that collect real-time data about the vehicle’s environment. This data is processed by onboard computers to support features like:
- Lane departure warning
- Adaptive cruise control
- Automatic emergency braking
- Blind spot detection
- Parking assistance
- Pedestrian detection
Each sensor type has strengths and limitations, which is why most modern vehicles use a sensor fusion system—combining multiple inputs for higher accuracy and reliability.
Camera-Based ADAS Systems
Cameras are one of the most widely used sensors in ADAS because they provide rich visual information similar to human eyesight.
How They Work
ADAS cameras use image recognition software to interpret road signs, lane markings, vehicles, pedestrians, and traffic lights. These cameras are typically mounted on:
- Windshields (forward-facing)
- Side mirrors
- Rear bumpers
- Around the vehicle for 360° views
Key Functions
- Lane keeping assist
- Traffic sign recognition
- Forward collision warning
- Pedestrian detection
- High beam assist
Strengths
- High detail and color recognition
- Effective for identifying objects like signs and lanes
- Cost-effective compared to other sensors
Limitations
- Performance drops in poor weather (fog, rain, snow)
- Struggles in low-light or glare conditions
- Requires precise calibration after windshield replacement or alignment work
Radar-Based ADAS Systems
Radar (Radio Detection and Ranging) uses radio waves to detect objects and measure their distance and speed relative to the vehicle.
How It Works
Radar sensors emit radio waves that bounce off objects and return to the sensor. By measuring the return time and frequency shift, the system determines:
- Distance
- Speed
- Direction of movement
Key Functions
- Adaptive cruise control
- Blind spot monitoring
- Rear cross-traffic alert
- Collision warning systems
Strengths
- Works in all weather conditions
- Excellent at measuring speed and distance
- Reliable in darkness, fog, or heavy rain
Limitations
- Limited detail about object shape or type
- Cannot clearly distinguish between objects (e.g., car vs truck vs wall in some cases)
- Lower resolution compared to cameras or LiDAR
LiDAR-Based ADAS Systems
LiDAR (Light Detection and Ranging) is the most advanced and precise of the three primary ADAS sensor types.
How It Works
LiDAR systems emit laser pulses that bounce off surrounding objects. By measuring the time it takes for the light to return, the system creates a highly accurate 3D map of the environment.
Key Functions
- High-resolution 3D mapping
- Advanced autonomous driving systems
- Obstacle detection and avoidance
- Precise distance measurement
Strengths
- Extremely accurate spatial mapping
- Excellent object detection and separation
- Performs well in complex driving environments
Limitations
- High cost compared to cameras and radar
- Performance can be affected by heavy rain, snow, or dust
- Still less common in mass-market vehicles
Camera vs Radar vs LiDAR: Quick Comparison
| Sensor Type | Best For | Strength | Weakness |
|---|---|---|---|
| Cameras | Object recognition | High detail & visual data | Weather/light sensitivity |
| Radar | Speed & distance tracking | Works in all conditions | Low visual detail |
| LiDAR | 3D mapping & precision | Extremely accurate spatial data | High cost, weather sensitivity |
Why Modern Vehicles Use Sensor Fusion
No single sensor is perfect. That’s why modern ADAS systems combine all three technologies to improve accuracy and safety.
For example:
- A camera identifies a pedestrian
- Radar measures their speed and distance
- LiDAR (if equipped) builds a precise 3D model of their position
Together, they allow the vehicle to make faster and more reliable decisions than any single sensor could alone.
Why ADAS Calibration Matters
After repairs such as windshield replacement, suspension work, or collision repair, ADAS sensors often need recalibration. Even small misalignments can lead to:
- Incorrect lane detection
- Delayed braking response
- Faulty collision warnings
- Reduced system reliability
Proper calibration ensures all sensors are accurately aligned with the vehicle’s geometry and manufacturer specifications.
Final Thoughts
ADAS sensors—cameras, radar, and LiDAR—are the foundation of modern vehicle safety systems. As vehicles continue evolving toward higher levels of automation, understanding how these sensors work is becoming essential for both drivers and automotive professionals.
The future of driving isn’t just assisted—it’s increasingly sensor-driven, data-powered, and precision-calibrated.
