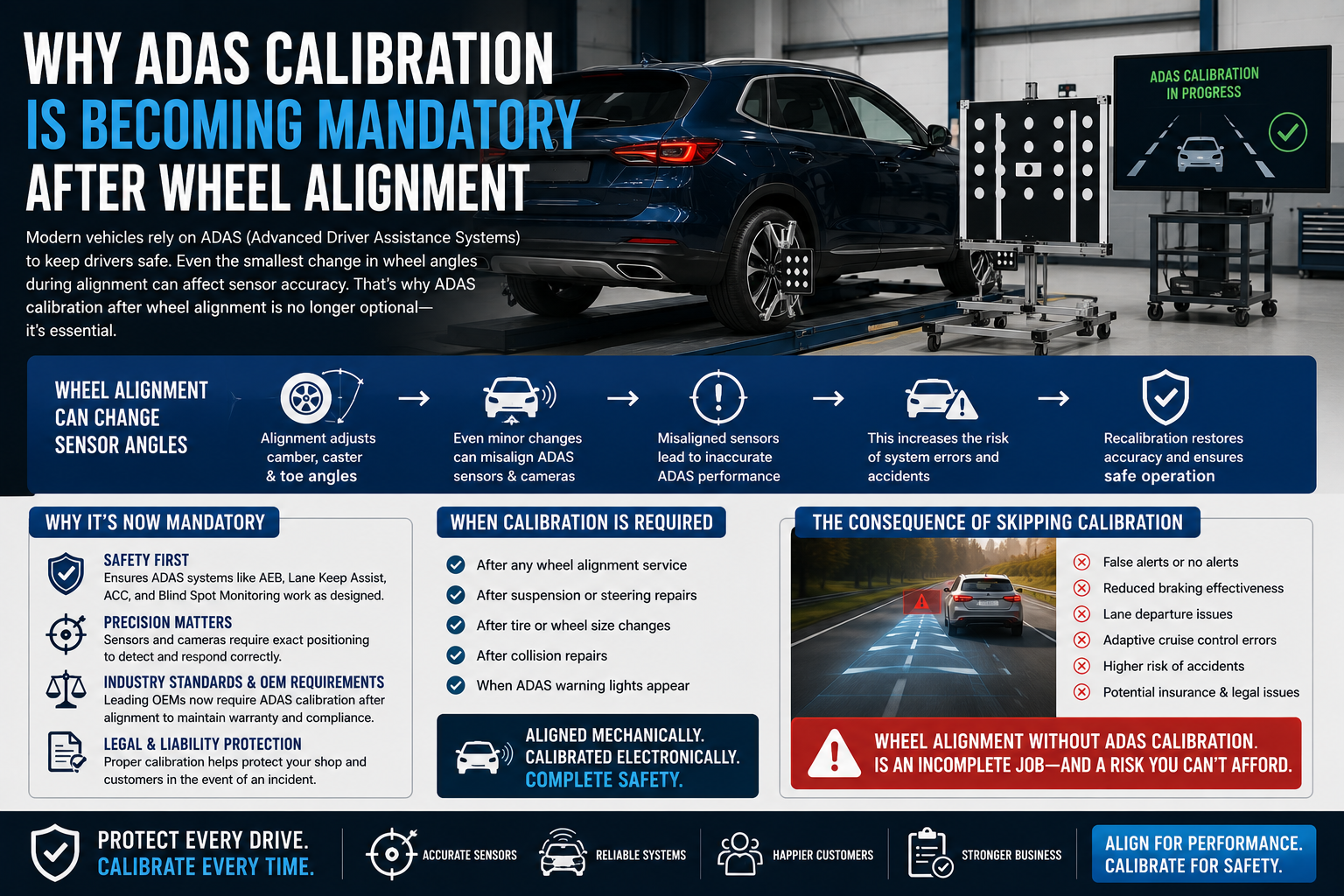

As modern vehicles become more advanced, wheel alignment is no longer just a mechanical adjustment. It’s now directly connected to a vehicle’s Advanced Driver Assistance Systems (ADAS)—and in many cases, it makes ADAS calibration necessary immediately after alignment work.
What used to be a straightforward service has evolved into a precision-driven process where even small changes in suspension geometry can impact safety systems like lane keeping, adaptive cruise control, and collision avoidance.
If you're new to ADAS services, read our Complete Guide to ADAS Calibration to learn when calibration is required, what equipment is needed, and how modern shops are implementing ADAS workflows.
Related blog: Is It Safe to Drive Without ADAS Calibration?
Search our wide variety of ADAS Calibration products!
How Wheel Alignment Impacts ADAS Systems
Wheel alignment adjusts key suspension angles such as:
- Toe
- Camber
- Caster
These angles determine how the vehicle’s wheels point and how it travels down the road. But here’s the critical part: many ADAS sensors rely on those same geometric references.
Front-facing cameras, radar units, and steering angle sensors are all calibrated based on:
- Vehicle centerline
- Thrust angle
- Wheel direction
So when alignment changes these values—even slightly—it can throw off ADAS accuracy.
Why ADAS Systems Are Sensitive to Alignment Changes
ADAS features depend on precise sensor orientation. If the wheels are even slightly misaligned relative to factory specifications, the system may interpret road conditions incorrectly.
For example:
- Lane keeping assist may drift or “hug” one side of the lane
- Adaptive cruise control may misjudge following distance
- Forward collision warning may trigger too early or too late
These systems don’t just “observe” the road—they rely on exact mathematical relationships between sensors and vehicle geometry.
Why Calibration Is Now Often Required After Alignment
Vehicle manufacturers are increasingly specifying ADAS calibration after alignment because:
1. Steering Angle Reset Alone Is Not Enough
Many systems require more than resetting the steering angle sensor. Cameras and radar must also be re-centered.
2. Suspension Adjustments Change Sensor Reference Points
Even minor adjustments can shift how sensors “see” the road ahead.
3. Advanced Driver Assistance Systems Are More Integrated
Newer vehicles use sensor fusion, meaning multiple systems depend on shared alignment data.
When ADAS Calibration Is Typically Required After Alignment
ADAS calibration is often recommended or required when:
- Front-end alignment is performed after suspension work
- Steering components are replaced
- Ride height is modified
- Accident-related repairs are completed
- Steering angle sensor readings are reset or changed
In many newer vehicles, alignment and calibration are now treated as a paired service, not separate tasks.
Types of ADAS Calibration Affected by Alignment
Camera Calibration
Front-facing cameras used for lane assist and traffic sign recognition must be precisely aligned with the vehicle’s centerline.
Radar Calibration
Radar sensors used for adaptive cruise control must be aimed correctly to maintain accurate distance tracking.
Steering Angle Sensor Calibration
This ensures steering input matches actual wheel direction—critical for stability and lane-based systems.
What Happens If Calibration Is Skipped?
Skipping ADAS calibration after wheel alignment can lead to serious issues:
- Inaccurate lane departure warnings
- Reduced braking response time
- Faulty blind spot detection
- Increased risk of driver misjudgment
- Potential liability concerns for repair shops
Even if the vehicle appears to drive normally, ADAS systems may not function correctly in emergency situations.
Why This Matters for Repair Shops
For automotive service providers, this shift represents a major change in workflow:
- Wheel alignment is no longer a standalone service
- ADAS calibration is becoming a required follow-up step
- More OEM procedures explicitly link both processes
Shops that fail to adapt risk comebacks, liability exposure, and customer dissatisfaction.
On the other hand, shops that integrate ADAS calibration into alignment services gain:
- Higher service value per repair
- Increased customer trust
- Compliance with OEM repair standards
- Reduced risk of system-related failures
The Future of Alignment and ADAS Integration
As vehicles move toward higher levels of automation, the connection between alignment and ADAS will only get stronger. Future systems will likely:
- Require calibration after most suspension work
- Use continuous self-checking sensors
- Depend even more heavily on precise geometry data
In short, alignment is no longer just about tire wear or steering feel—it’s a direct input into vehicle intelligence systems.
